ARCC Retrofit Electric Bike Conversion Service

Regular price £1,799.00

Unit price per

Your Bike

only 0 left in stock

ARCC Intelligent Smart Pod eBike Conversion Service

Fitted at the ARCC headquarters in Cambridge by a team of experts, the Intelligent Drive Pod uses a Bosch battery to electrify your bike and enhance your ride.

How It Works



The ARCC Intelligent Drive Pod is currently compatible for retrofitting with the following bikes:

  • Abington
  • Airnimal Joey
  • Brompton
  • Cinelli
  • Moulton TSR
  • Rosemont

Bespoke Conversions

As well as the current range, we can also do bespoke fittings to some bikes starting from £2,100. If you do not see your bike listed in the range then don't hesitate to get in touch (info@pedalandchain.co.uk). Previous bespoke bike retrofits include a Recumbent and The PF Mobility Side-By-Side Trike.

ARCC will honour the remainder of your Brompton’s warranty once you retrofit it.



Pick Up Fee | Delivery Fee

Brompton: £24.99 | £24.99

Arinimal Joey: £50 | £50

Moulton TSR: £50 | £50

Bespoke: To be quoted

Key Information

ARCC Intelligent Smart Pod eBike Conversion Service

Lightweight Upgrade

Only adding 3.9kg to the weight of the standard bike, the ARCC Intelligent Drive Pod combines Bluetooth-controlled variable power levels with automatic hill/gradient compensation, allowing commuting cyclists to choose the amount of effort both they and the motor provides; automatically compensates for hills and gradients; and provides ‘launch control’, for safety when moving away from lights and crossings in heavy traffic.

Expertly Crafted

Designed and built by our experts at ARCC, the Intelligent Drive Pod uses a readily available Bosch battery, has a range of up to 75 kilometres and boasts a unique function in its ‘launch control’ which provides the rider with a three-second boost, to help in moving away from traffic lights and crossings in heavy traffic.

Impressive Battery Life

The pod uses an industry standard 4.0 Ah, 6.0 Ah or 9.0 Ah Bosch battery, which are readily available from stores and online and have a range of up to 75km dependant on the battery used. When the battery is removed, the eBike reverts to its standard configuration and can be used as a regular bike.

  • The system includes:
    • Intelligent pod
    • 4.0Ah Bosch battery
    • Battery cover
    • Bosch battery charger
    • Bluetooth controller - available in black, silver, red and blue
    • Bluetooth controller cradle
    • Charging cable
    • Spare battery holder - Abington and Moulton TSR only
    • 5-year warranty on the intelligent pod
    • Additional extras / upgrades:
    • 6.0Ah Bosch battery
    • Bag conversion kit
    • Pod lock
eBike Specification

ARCC Intelligent Smart Pod eBike Conversion Service

eBike Classification

Pedelec



Motor

Abington and Rosemont: Brushless 250W 36V DC 170 RPM front wheel drive.

Moulton TSR: Brushless 250W 36V DC 280 RPM front wheel drive.

Brompton: Brushless 250W 36V DC 306.65 RPM front wheel drive.



Battery

Bosch Lithium Ion 36V 4.0Ah (144 Wh). (From £1799).

Bosch Lithium Ion 36V 6.0Ah (216 Wh) optional. (From £1934).

Bosch Lithium Ion 36V 9.0Ah optional. (From £1703 + 9.0Ah battery bought separately at approx. £450).



Mains Charger

Bosch AL 3640 CV professional charger.



Battery Charge Time

4.0Ah – 35-50 Minutes full charge dependant on charger used.

6.0Ah – 50-75 Minutes full charge dependant on charger used.

9.0Ah – 75-100 Minutes full charge dependant on charger used.



Control Pod

CNC machined Peraluman 470 aluminium grade 5083/AlMg  4.5Mn. Black hard anodised finish.



Control Pod USB Interfaces

1 x USBC 2.0 charging/data port 5V, 1500mA

1 x USBC 2.0 charging/data port 5V, 500mA

1 x USBC 2.0 charging port 5V, 500mA



Bottom Bracket

Thun torque sensor BB cartridge X-Cell RT square taper 68mm shell/119mm spindle.



Brake Switch

Safety cut-off switches, front and rear.



Assisted Range

4.0Ah up to 35km depending on riding style.

6.0Ah up to 50km depending on riding style.

9.0Ah up to 75km depending on riding style.



Maximum Assisted Speed

Power assist limited to 15.5mph/25km/h



Pod Weight

3.9kg (including battery)

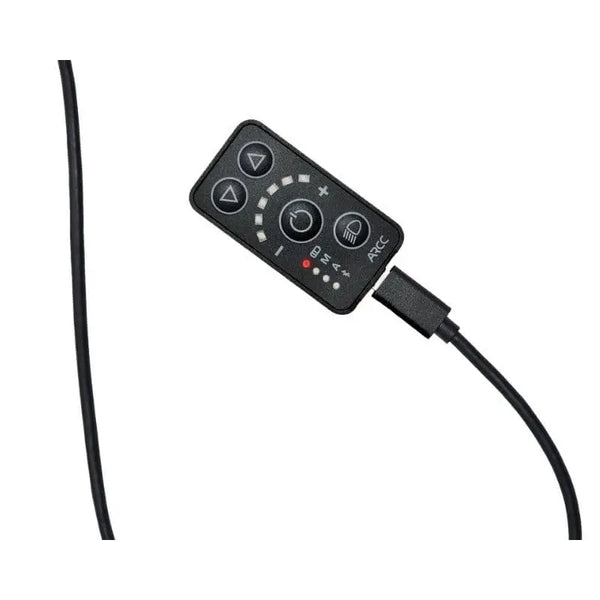

Assistance Controller

Bluetooth controller



System Status Indicators

2 x tri-colour LED’s



Headset

Abington: Black BX Ahead Threadless 1-1/8”

Rosemont: Silver BLB Ahead Threadless 1-1/8”

Moulton TSR: Miche Team 1"



Spare Battery Holder

CNC Machined Peraluman 470 aluminium grade 5083/AlMg 4.5Mn anodised.

Make The Switch

ARCC Intelligent Smart Pod eBike Conversion Service

Make the switch today to upgrade your bike without paying for a new electric bike. Keep using your favourite bike and increase your pedalling power so you no longer need to worry about hills and aching legs.

To start the process, please get in touch at info@pedalandchain.co.uk . Give us a description of your bike along with photographs for bespoke bikes.

We will organise collection of your current bike, retrofit ARCC's smart pod system and then deliver your new electric bike in a seamless process.

All conversions are fitted by our partner team of experts at their Cambridgeshire headquarters.

10% of our profits from electric bike and electric scooter sales will be donated to Sustrans via Work for Good.

With every order of an e-bike or e-scooter through Pedal & Chain, you are contributing to the brilliant work Sustrans are doing.

Why Sustrans?

Sustrans are the UK charity making it easier for people to walk and cycle. The work they do creates healthier places and happier people. This aligns perfectly with our mission to enable people to be kinder to themselves and the planet.

They are custodians of the National Cycle Network, a UK-wide network of traffic-free paths for everyone, connecting cities, towns and countryside, loved by the communities they serve.



What difference can you make?

50,000 people a year die prematurely in the UK from exposure to the poor air quality on our busy city streets. Cars internally recirculate the pollution giving their occupants a double dose! Cyclists have much less exposure and an e-bike rider using quieter roads has practically none.


Sustrans brings people together to create places with clean air and green spaces, where friends and facilities are just a short walk away.

When you order an electric bike or e-scooter from Pedal & Chain, you are making a difference to communities across the UK.

If you're considering getting a new E-Scooter or E-Bike but don't have the cash to pay for one right now, financing may be a great solution for you.

With PayPal Credit, you can spread the cost of your new ride across 4 monthly payments at no extra cost.



STEP 1

Login or create an account with PayPal to complete the PayPal Credit application

APPLY HERE


STEP 2

Once approved you'll have a credit limit linked to your PayPal account.


STEP 3

Go ahead and make your purchase using the PayPal option at checkout.



If you have any questions about PayPal finance, speak to us through our live chat or email info@pedalandchain.co.uk.

Why order from Pedal & Chain?

✔  We donate 10% of our profits to Sustrans
✔  14-days free electric bike insurance (applicable for EAPC bikes)
✔  14-day returns policy
✔  Best price guaranteed
✔  Access to mechanics nationwide
✔  At least 6 months manufacturer's warranty
✔  Expert support from our friendly team
✔  Free E-Book with every E-Bike & Scooter order



FREE & FAST DELIVERY

Delivery times vary depending on the supplier, please find details for each product in the description tab on the product page.

Enjoy free home delivery on all orders over £500. Our nationwide couriers include FedEx, UK Mail, DHL and UPS.

Once your order has been placed, assuming it is in stock and available for dispatch, we will charge your card and your order will be dispatched within 5 working days. We’ll send you tracking details by email within 48 hours of your order being dispatched. If you have not received tracking details within 6 working days, please reach out to us via email at info@pedalandchain.co.uk so that we can help.



YOU'RE COVERED BY A WARRANTY

Shop with confidence knowing that your product will be covered by a manufacturer's warranty. This means that if any faults should arise through normal use, we'll support you and arrange the repair or replacement with the manufacturer.



ACCESS TO MECHANICS NATIONWIDE

We can signpost you to experienced e-bike mechanics to assist you with services and repairs. We're committed to providing excellent aftercare so you can ride away knowing you'll be looked after.



14-DAY RETURNS

You have 14 days after receiving your item to request a return.

Click here for full details of our returns policy.

You can always contact us for any return questions at returns@pedalandchain.co.uk



CANCELLATIONS & REFUNDS:

Any orders cancelled after 12 hours of placing the order may be subject to additional fees. If your order has been dispatched, you (the buyer) will be responsible for any costs associated with returning the item. Any refunds can only be issued to the same payment method which was used to place the order.

Customer Reviews

Based on 5 reviews
60%
(3)
40%
(2)
0%
(0)
0%
(0)
0%
(0)
R
Robin Gulliver
Very pleased with my ARCC Brompton…

Very pleased with my ARCC Brompton conversion. I find that, even with level 3 it is too easy to reach the 15.5 mph assistance limit. On my usual route into town it seems to make the hills disappear!
Subjectively, I admit, the battery range (6ah) seems a bit less than advertised. You certainly feel the difference when it stops working!

J
Jean Galea
Unique Intelligent Bike Power

The ARCC Intelligent Power System has been designed by ARCC Innovations to provide unique intelligent bike power. It combines variable power levels with automatic hill/gradient compensation and launch control. This allows commuting cyclists to choose the amount of effort both they and the motor provides; automatically compensates for hills and gradients; and provides ‘launch control’, for safety when moving away from traffic lights and crossings in heavy traffic.

V
Velorution
Fast, effortless and safe getaway

The e2-pod features a launch control function. This can be activated by applying both brakes and pressure to the left pedal. When the brakes are released and the rider pedals, the motor delivers maximum power for a period of three seconds. This enables a fast, effortless, and safe getaway from lights and busy crossings in heavy traffic, as well as an extra boost for hill starts

E
Electric Bike Report
A Silky Smooth Ride

The ARCC e2-pod system provides a silky smooth ride, the motor pulling along nicely some fractions of a second after you start pedalling, and cutting off almost instantaneously on stopping. It’s clearly made to a very high standard too. The pod itself and the handlebar control unit are beautifully engineered and manufactured and the high tech Bluetooth approach works very well.

e
ebike tips
Precision Engineering

What stands out before you have even ridden the bike is the precision engineering. There’s further reassurance of the system’s quality in the form of a five year guarantee, and this is complemented by the fact ARCC will honour the Brompton warranty if they supply a new model with the ARCC system (or they will retrofit it to your own Brompton and honour any remaining warranty on that too). Bosch batteries come with a two year guarantee from Bosch themselves.
