Dawes Arc Electric Folding Bike 250W Compact USB Charging
Dawes Arc Electric Folding Bike 250W
The Dawes Arc electric folding bike has been revamped with an all-new design and near-doubling of its battery range while retaining the classic easy-fold features it has become known for amongst commuters and the caravan, motorhome and boating communities.
Description

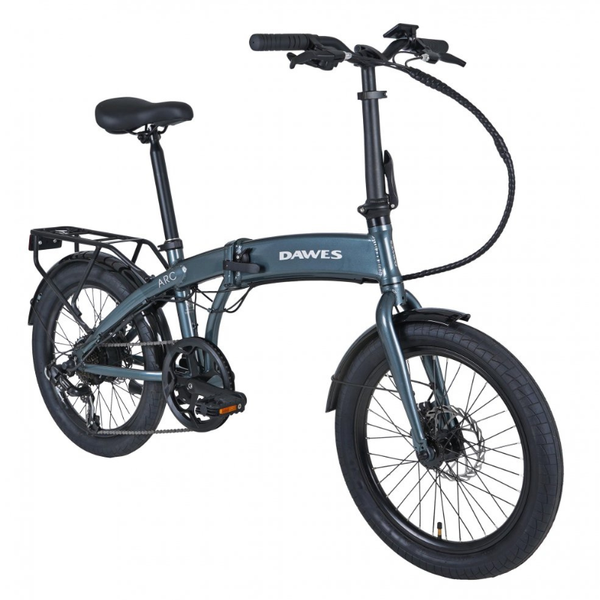

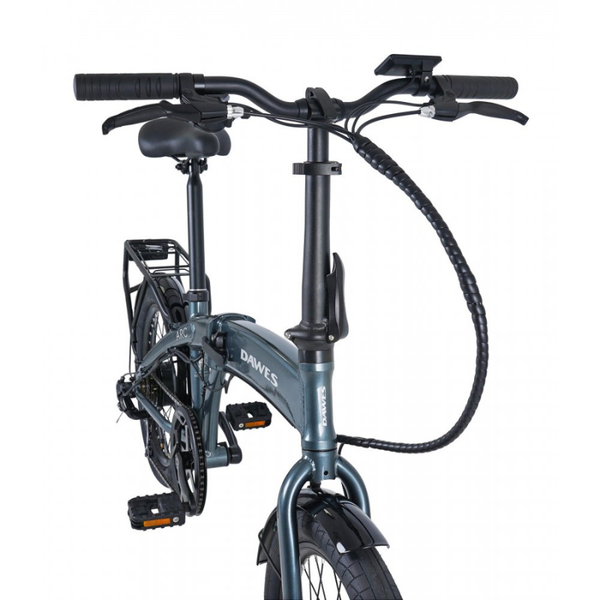

Dawes Arc Electric Folding Bike 250W
The Dawes Arc is a compact, foldable electric bike designed for convenience, comfort, and everyday commuting. Powered by a reliable Bafang motor with a 375Wh battery, it delivers smooth pedal assistance, folds away in seconds, and comes fully equipped with practical extras for all-weather riding.
Key Features
-
Battery & Range – Integrated 375Wh battery, up to 40 miles / 64km, 5-hour recharge.
-
Motor Power – Bafang rear hub motor with 32Nm torque for hills and flat terrain.
-

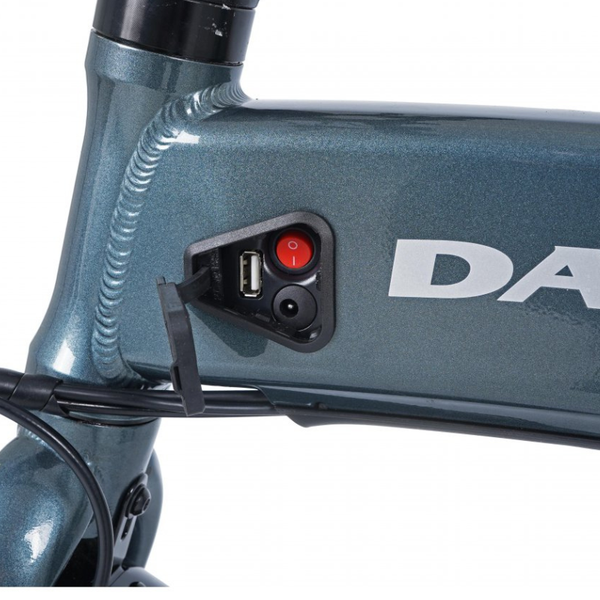

USB Charging – Charge your phone or accessories on the go.
-

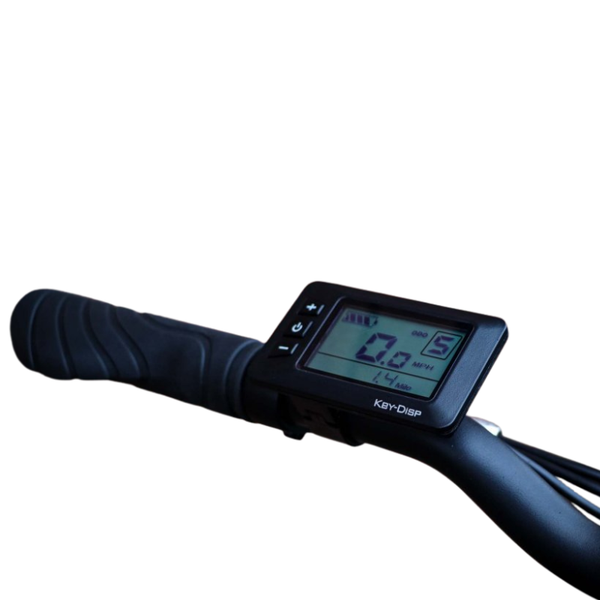

Display – Backlit handlebar display with assist modes, battery, speed & trip data.
-
Gearing – 1x7 Shimano Altus/Tourney with upgraded trigger shifter.
-
Brakes – Reliable mechanical disc brakes for safe stopping in all conditions.
-
Wheels & Tyres – 20″ wheels with 20x2.40 high-volume tyres for comfort and stability.
-
Quick Folding Design – Folds in 3 simple steps in under 15 seconds.
-

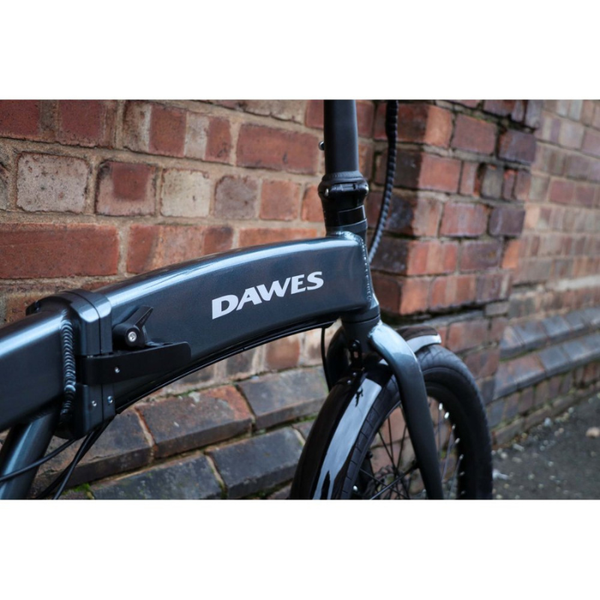

Lightweight Frame – Alloy construction, easy to carry and store.
-
Fit for All Riders – One-size frame with adjustable stem for riders 5’0”–6’2” (152–188cm).
-
Commuter Ready – Comes with pannier rack, full-length mudguards, and kickstand.
WARRANTY INCLUDED
Ride away with peace of mind knowing that you're covered by a 1-year manufacturer's warranty.
FREE & FAST TRACKED DELIVERY
Expected delivery time will be approximately 3 - 7 working days upon receipt of your order. A pre-delivery inspection will be completed to ensure your new electric bike is in perfect condition for delivery.
SPECIFICATION
| Maximum Range | 40 miles / 64km |
|---|---|
| Recharge Time | 5 hours |
| Maximum Assisted Speed | 15.5mph / 25kmh |
| Motor | Bafang rear hub motor, 32nm torque |
| Motor Type | Rear hub motor |
| Motor Torque | 32nm |
| Battery | 36V 10.5Ah, 378wh Integrated battery |
| Battery Type | Integrated |
| Charger | 36V 2A, 3 pin UK plug |
| Display | Key Display KD-21C mode selection, battery indicator, current speed, distance and trip distance |
| Speed Sensor | Cadence sensor |
| Frame | Dawes 6061 alloy folding frame with integrated batter |
| Fork | Dawes, Steel |
| Headset | 1-1/8" |
| Handlebar | Alloy riser bars, 600mm wide |
| Stem | Alloy folding with adjustable height, Black |
| Grips | Comfort style |
| Gear Shifters | Shimano Altus SL-M315 trigger shifter, 7 speed |
| Rear Derailleur | Shimano Tourney RD-TY500, 7 speed |
| Chain | KMC Z7, 7 speed |
| Cassette/Freewheel | Shimano MF-TZ500, 14-34T, 7 speed |
| Chainset | Alloy, 52T with double chain guard |
| Number of Gears | 7 |
| Bottom Bracket | Cartridge BB |
| Pedals | 9/16" folding |
| Brakes | Mechanical disc brakes, 160mm rotors |
| Brake Levers | Alloy, Black |
| Front Hub | Alloy, Quick release, Black |
| Rear Hub | Bafang rear hub motor, 32nm |
| Rims | 20" alloy, Black |
| Tyres | Wanda P1472, 20x2.40" |
| Saddle | Padded comfort saddle, Black |
| Seat Post | Alloy 500mm, Black |
| Mudguards | Full length mudguards, Black |
| Kickstand | Adjustable kickstand |
| Pannier Rack | Steel pannier rack, Black |
| Other Accessories | Bell and chainguard |
